ELCI Main 30A Double Pole + 2 Positions
Specifications
Positions5
Nominal Voltage120V AC
Leakage Trip Amps30mA
Height5.25" (133.35mm)
Width 7.50" (190.5mm)
Depth3.50" (88.9mm)
Weight2.25lb (1.02kg)

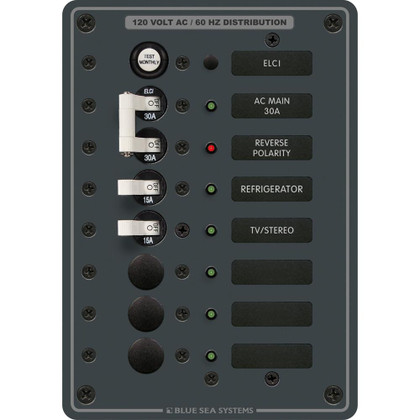

Product : BLUE SEA 8101 ELCI GFCI PANEL AC 5 POSITION
Manufacturer : BLUE SEA SYSTEMS
Manufacturer Part No : 8101
UPC : 632085081010
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- Red " Reverse Polarity" LED
- All circuit label positions are backlit
- "ON" indicating LEDs
Specifications
Positions5
Nominal Voltage120V AC
Leakage Trip Amps30mA
Height5.25" (133.35mm)
Width 7.50" (190.5mm)
Depth3.50" (88.9mm)
Weight2.25lb (1.02kg)
