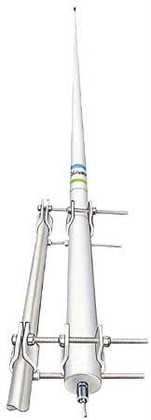

Shakespeare 476 21'VHF Antenna Ships Truck Freight Collect

Shakespeare 476 21'VHF Antenna Ships Truck Freight Collect

No reviews yet Write a Review
$938.79
SKU:
WTSHA476
UPC:
719441100063
Weight:
180.00 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Shakespeare Style 476
21 ft. (6.40 M) VHF Marine Band 10dB

Phased -wave elements in a collinear array with a broadband matching section, and a coaxial choking sleeve

Designed to get the message through when all others fail. Its unique design puts the signal on the horizon, providing gain in all directions. For heavy duty seagoing applications, such as workboats, tugs, tidal well service boats, etc. An excellent choice for land-based stations.


Brass and copper internal elements
SO-239 connector at the base
Mount: The 476 has a 2 in diameter x 26in long 6061-T-6 aluminum sleeve which can be strapped directly to a mast or used with Shakespeare Style 483 Clamp Set or Style 484 Wall Mounting Brackets (each sold separately)
One section.
10dB Gain
Shakespeare 476 Specifications
Band: VHF Marine Band
Antenna Gain: 10dB
Max. Input Power: 350 watts
SWR: nominally 1.5:1 at 156.8 MHz
Bandwidth: 10 MHz within 2.0:1 VSWR
Ferrule: Aluminum sleeve for mast mounting
Color/finish: White
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: Special - DC Grounded, but reads " open" on ohm meter
Shakespeare
Limited Warranty: 2 years
