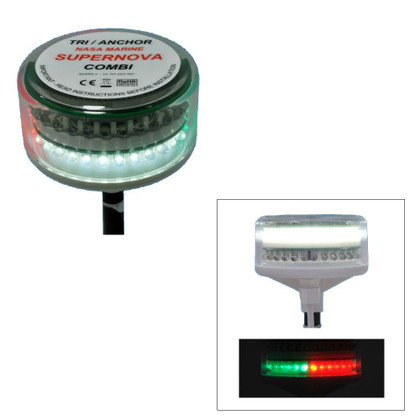

CAD DrawingCAD Drawing 2CAD Drawing 3Supernova Tricolour Navigation Light
Supernova lights use high efficiency LEDs ensuring long life and low power consumption. A tough polycarbonate shell protects Supernova from the elements while a Gore-Tex membrane vent ensures equalization of pressure on the seals.
Specifications:
- Supply voltage – 10V to 20V (For full brightness)
- Supply current – 200mA @ 12V (Typically 90% less than equivalent incandescent lamp)
- Night time visibility – 2 nautical miles minimum (25° above and below the centerline)
- Waterproof Rating – IP67 (Submersion)
- Dimensions – 91mm diameter x 113mm Height (including mounting)
Configuration:
- Anchor light version – 360 degrees white
- Tri-color version – 112.5 degrees red, 112.5 degrees green,135 degrees white
Product : CLIPPER SUPERNOVA TRICOLOUR NAVIGATION LIGHT
Manufacturer : CLIPPER
Manufacturer Part No : SUPER-TRI
UPC : 609722871310
