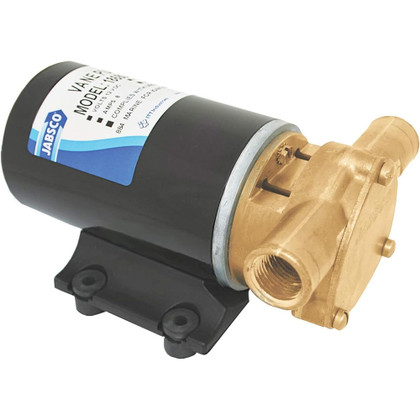

Jabsco Light Duty Diesel Transfer Vane Pump - 24V

Jabsco Light Duty Diesel Transfer Vane Pump - 24V

No reviews yet Write a Review
$379.49
SKU:
CW109370
UPC:
671880532204
Weight:
7.10 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Light Duty Diesel Transfer Vane Pump - 24V

Features:

  • The pump head may be mounted at 90° increments on the motor to allow mounting as needed
  • Meets USCG 183.410 & ISO8846 Marine (Ignition Protection)

Specifications:

  • Body Materials: Bronze
  • Rotor: Plastic - Liquid Crystal Polymer
  • Vanes: Plastic - Polyphenylene Sulfide
  • Seal - Nitrile Lip Seal
  • Shaft Material: Stainless Steel
  • Port Type: 1/2" NPT Female or 1" (25mm) Hose barb
  • Voltage: 12 or 24VDC
  • Motor Type: Intermittent duty permanent magnet type
  • Duty Cycle: 30 minutes at 10ft (3m) at 86°F (30°C)
  • Weight: 2.5 (kg) 5 1/2 (lb)

Manufacturer : Jabsco
Manufacturer Part No : 18680-0940
UPC : 671880532204
