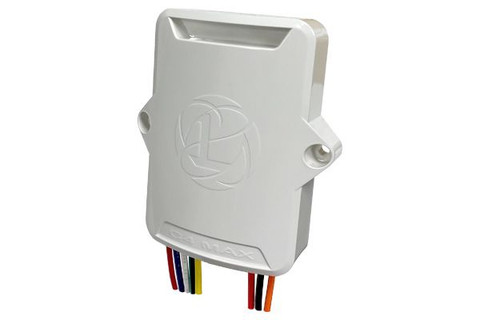

CAD DrawingCAD Drawing 2CAD Drawing 3Lumitec Pico C4-MAX Expansion Module
Model: 101873Pico Expansion Modules extend the power and reach of the Poco Digital Lighting Control system making it possible to control other manufacturers’ luminaires, lighting accessories and devices that do not have the sophisticated PLI technology built-in.
The Pico C4 Moduleprovides Poco or TTP control of third-party RGB or RGBW lighting accessories. This means that everything from strip lighting to lighted speakers can be controlled through the Poco system. On vessels not equipped with the Poco system, the Pico C4-MAX provides control of color and intensity through any normal on/off switch, using Lumitec’s field-proven TTP protocol.
Specifications| IP Rating | 67 |
| Max Amp/ch | 10A |
| Number of Channels | N/A |
| Op. Temp F/C | -31/35 to + 131/55 |
| PLI Enabled | Yes |
| Timed Toggled Protocol (TTP) | Yes |
| UL Certified | No |
| Voltage | 10vDC-30vDC |
| Dimensions | 3.5 in H x 0.88 in D x 3.1"" W |
