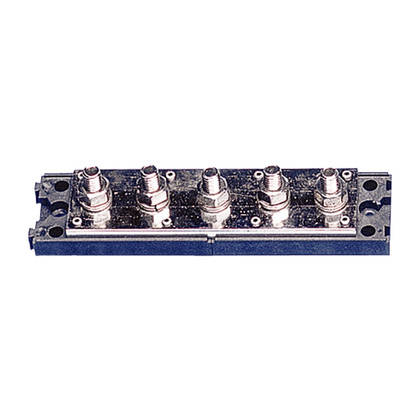

CAD DrawingCAD Drawing 2CAD Drawing 3BB-5 Bus Bar
Ideal as a DC ground tie point or positive bus, this heavy-duty, 500-amp-rated bus bar assembly features 5/16 in. studs on 1 in. center in 1/4 in. thick copper bar for common connection or distribution of large wire gauges.
Features:
- Accommodate 5/16" ring terminals
- Insulated base (reinforced nylon resin with a clear protective cover)
Specifications:
- Quantity of 5/16" Studs: 5
- Size (inches): 6-1/16” x 1-1/2”
Manufacturer : Newmar Power
Manufacturer Part No : BB-5
