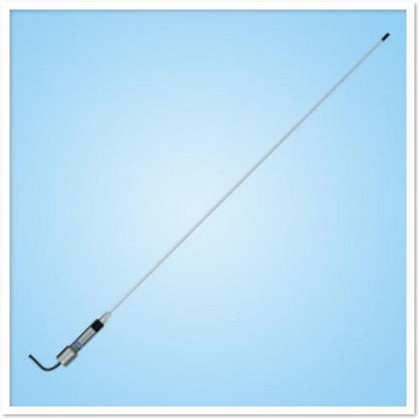

Shakespeare Style 5250-AIS Skinny Mini
3 ft. (0.91 M) VHF Marine Band 3dB
3 ft. (0.91 M) VHF Marine Band 3dB
End-fed -wave stainless steel whip
Designed to meet the broader bandwidth requirements of all popular AIS transceivers, this antenna mounts with ease. Its compact size will be welcome aboard any vessel. Chrome plated brass canister minimizes the de-tuning associated with antennas having plastic canisters.
- Built for AIS transceivers
- Sealed, tin-plated copper wire coil
- Stainless steel whip (36")
- Requires mount with center hole for passage of the supplied 15' RG-58 cable.
- Suggested mount: Style 4187, 5187, 4188-S or 4190 Ratchet Mount (each sold separately)
- PL-259 connector included
- One section
| Shakespeare 5250-AIS Skinny Mini Specifications | |
| Band: | VHF Marine Band |
| Antenna Gain: | 3dB |
| Max. Input Power: | 50 watts |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Bandwidth: | 6 MHz within 2.0:1 VSWR |
| Coax Supplied: | 15 ft of RG-58 |
| Connector Supplied: | PL-259 |
| Polarity: | Vertical |
| Impedance: | 50 Ohms |
| DC Ground: | No DC Ground - The antenna will read open on continuity test. |
| Shakespeare Limited Warranty: | 2 years |
