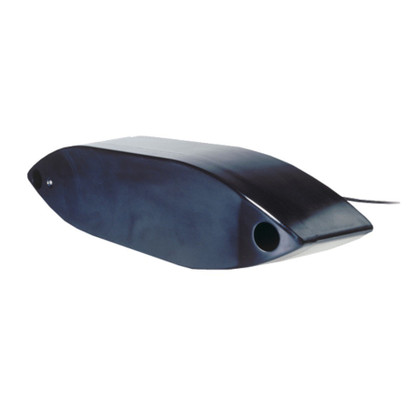

CAD DrawingCAD Drawing 2CAD Drawing 3Airmar R509 Low-High Wide Chirp, 3kW, w/FB, No Connector, DT
Model: R509C-LHW- Depth and fast-response water-temperature sensing
- 2 to 3 kW of power for exceptional deep-water performance
- Low frequency: 28 to 60 kHz, 23° to 9° port-starboard beamwidth, 11° to 5° fore-aft beamwidth, Maximum depth of 3048 m (10000')
- High frequency: 150 to 250 kHz, 25° constant beamwidth, Maximum depth of 152 m (500')
- 132 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidths
- High frequency provides superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper-water column
- Urethane housing with fairing for optimal performance
Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready R509LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500'). The low-frequency band is rated to 3 kW and delivers amazing deep-water performance to 3048 m (10000'). Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.
Specifications| Acoustic Window | Epoxy/urethane |
| Cable-Length | 15 m (49') |
| Connector | Bare Wire |
| Deadrise Range | Up to 25° with fairing |
| Frequency | Low-High Wide |
| Low Frequency | 28-60 kHz |
| Low Frequency Beamwidth | 25°-16° |
| High Frequency | 150-250 kHz |
| High Frequency Beamwidth | 25° |
| Housing Material | Urethane |
| Max Deadrise | Up to 22° |
