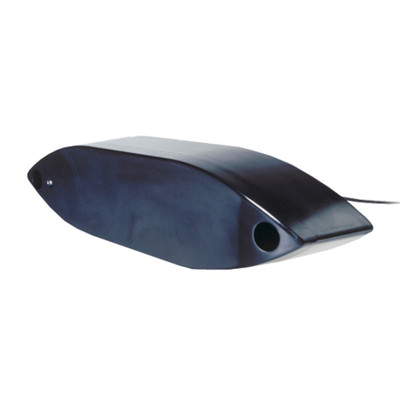

CAD DrawingCAD Drawing 2CAD Drawing 3Airmar R509 Low-Medium Chirp, 3kW, w/FB, No Connector, DT
Model: R509C-LM- Depth and fast-response water-temperature sensing
- 2 to 3 kW of power for exceptional deep-water performance
- Low frequency: 28 to 60 kHz, 23° to 9° port-starboard beamwidth, 11° to 5° fore-aft beamwidth, Maximum depth of 3048 m (10000')
- Medium frequency: 80 to 130 kHz, 13° to 8° beamwidth, Maximum depth of 914 m (3000')
- 82 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 38, 50, 88, and 107 kHz plus everything else in the bandwidth
- Urethane housing with fairing for optimal performance
- Patented Xducer ID® technology
Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna, and other species is a 2-3 kW, low and medium-frequency transducer. The Chirp-ready R509LM delivers the deep-water performance of the low frequency down to 3048 m (10000') plus the detailed returns produced by the narrower beams of the medium band.
Chirp technology shows 5 to 10 times-greater detail and resolution than conventional frequencies. The R509LM transmits across the low-frequency bandwidth of 28 to 60 kHz and operates in the medium-frequency range of 80 to 130 kHz. This transducer delivers up to 82 kHz of total bandwidth in a single installation.
Specifications| Acoustic Window | Epoxy/urethane |
| Cable-Length | 15 m (49') |
| Connector | Bare Wire |
| Deadrise Range | Up to 25° with fairing |
| Frequency | Low-Medium |
| Low Frequency | 28-60 kHz |
| Low Frequency Beamwidth | 11°x23°-5°x9° |
| Medium Frequency | 80-130 kHz |
| Medium Frequency Beamwidth | 13°-8° |
| Housing Material | Urethane |
| Max Deadrise | Up to 22° |
