Humminbird 740222-1 Adapter Kit, Target Lock System For Ultrex 60""

Humminbird 740222-1 Adapter Kit, Target Lock System For Ultrex 60""

No reviews yet Write a Review
$1,699.99
SKU:
WTHUM7402221
UPC:
082324058127
Weight:
16.30 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Humminbird Mega Live TargetLock Adapter kit - for Ultrex 60""

Model: 740222-1
  • MEGA Live TargetLock is mounted independent of the trolling motor steering, which allows anglers full use of their trolling motor, including Spot-Lock, while having dedicated control of MEGA Live Imaging.
  • The TargetLock feature allows anglers to set a directional lock of the live sonar and it will keep itself oriented, so anglers never lose sight of the structure, even while the boat moves in the water.
  • MEGA Live TargetLock can be controlled, from the included MEGA LIVE foot pedal, the trolling motor foot pedal using the Minn Kota Steer feature (requires motor with i-Pilot Link), the Humminbird fish finder, or from an optional accessory hand remote.
  • The MEGA Live Sweep provides a constant 120 degree sweep out in front of the boat to help identify structure and fish while maintaining control of the trolling motor. (Requires AS GPS HS or Minn Kota Heading Sensor with Ultrex trolling motor with i-Pilot link)
  • MEGA Live Imaging allows fish and structure to be seen in real-time, with no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view.
  • Choose from multiple viewing modes; Forward Mode for partial coverage below the boat and out away from the boat, Down Mode for a full view below, and Landscape Mode for a wide, top-down view looking out and around the boat.
  • Connect MEGA Live Imaging to compatible Humminbird models via the included Ethernet cable. There is no external sonar box required for installation, allowing for the connection of optional sonar source like MEGA 360 Imaging® or Built-in MEGA Imaging® to the same control head.
  • Compatible Humminbird control heads: All APEX™? models, All SOLIX®? models, and HELIX®? 8-12 G3N & HELIX 7-15 G4N models (Must be MEGA Side Imaging or MEGA Down Imaging model).
  • MEGA Live TargetLock is exclusively compatible with Minn Kota®? Ultrex™? and Ultrex QUEST™ - 60" trolling motors.
  • MEGA Live Imaging Transducer and Trolling motor not included.

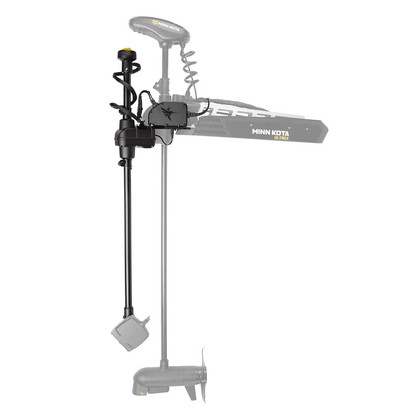

This adapter kit is for users who have a MEGA Live Imaging Transducer and Minn Kota® Ultrex™ trolling motor with a 60"" shaft that are looking to add the advantages of MEGA Live TargetLock. MEGA Live TargetLock™ is independently mounted from the trolling motor shaft and provides full use of the trolling motor, including Spot-Lock®, without sacrificing the sonar view. The TargetLock feature allows anglers to lock the MEGA Live beam in the direction of structure, so even when the boat moves, the MEGA Live view stays fixed in that direction. MEGA Live Imaging™ provides the most impressive live sonar on the water, allowing the angler to watch fish and structure in real-time, in their choice of views; Down, Forward and Landscape Modes. Engineered specifically for Minn Kota® Ultrex™ Trolling Motors to unlock exclusive features of the One-Boat Network® like TargetLock, MEGA Live Sweep (requires source for Heading), and Minn Kota Steer (requires motor with i-Pilot Link).


What's in the Box:
  • MEGA Live Steering Assembly
  • Wireless Foot Pedal
  • Ultrex Mounting Kit and Hardware
  • 20' Ethernet Cable
  • 10' Power Cable
