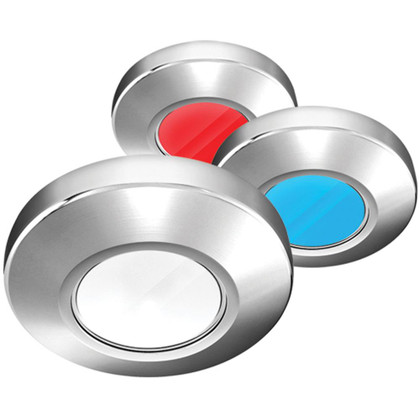

Profile P1120 Tri-Light Surface Light - Red, White & Blue - Chrome Finish
The Profile P1120 is a one light fixture with 3 colors on only 2 wires! Use your existing switch and wiring to cycle through Red, White and Blue LED colors. Perfect for Hardtop, Cockpit and Arch lighting.
Specifications:
Features:
Exclusive Technology:
Product : I2SYSTEMS PROFILE P1120 TRI LIGHT SURFACE MOUNT RED WH BL
Manufacturer : I2systems Inc
Manufacturer Part No : P1120Z-11HAE
UPC : 015000010386
Product : I2SYSTEMS PROFILE P1120 TRI LIGHT SURFACE MOUNT RED WH BL
The Profile P1120 is a one light fixture with 3 colors on only 2 wires! Use your existing switch and wiring to cycle through Red, White and Blue LED colors. Perfect for Hardtop, Cockpit and Arch lighting.
Specifications:
- 1.5 watts
- 9-30V DC input
- 3 Colors in 1 Fixture
- 3" Diameter
- Stainless Steel Construction
- Exterior Rated
- Surface Mountable
- IP67, Exterior Rated
- Up to 50,000 Hours of Operation
- 2007 IBEX/NMMA Innovtion Award Winner
Features:
- Advanced optical system - 120 degree full angle and even light, no LED "dots" or pixilation
- Rugged design - Stainless steel construction, sealed design, and electronic regulation to the LED source ensure product longevity
- No heat or UV in the light beam - Fixture lens remains much cooler than halogen sources, allowing safe and "burn free" operation
- In addition, no UV means reduced risk of fading or deteriorating products or artifacts on display
- Stainless Steel Trim with PVD - Removable trim ring and Physical Vapor Deposition (PVD) coating provides a very durable surface finish which will not tarnish or discolor
- Surface mounting - Simply mount the fixture with the three included mounting screws and snap on the bezel
Exclusive Technology:
- SmartDriver Integrated - Connect the Profile to a wide range of voltages without sacrificing light output or lifetime
- No external drivers are required and wiring is made simple
- Tri-Light Technology - i2Systems Tri-Light Technology offers 3 colors of light within a single fixture with only 2 wires
- Simply toggle the input voltage off and back on again to change from one color to the next
Product : I2SYSTEMS PROFILE P1120 TRI LIGHT SURFACE MOUNT RED WH BL
Manufacturer : I2systems Inc
Manufacturer Part No : P1120Z-11HAE
UPC : 015000010386
