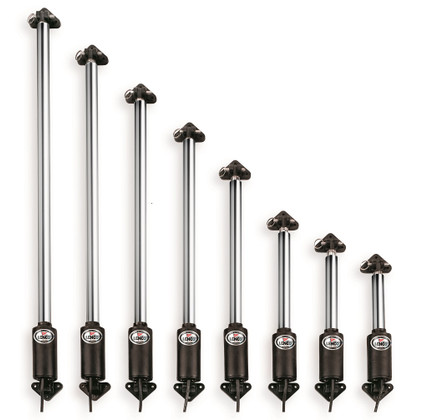

CAD DrawingCAD Drawing 2CAD Drawing 3Lenco 20"" Electric Hatch Lift - 12-Volt - 33""-53"" L.O.A
Model: 20778-001- Clear anodized aluminum tubing
- Complete with 2' (61 cm) lead and Deutsch plug
- Clutchless ball screw design will not drift, never binds and runs in sync on dual lift applications
- Inline motor design delivers over 500 lbs. (226.79 Kg) of force
- Water resistant and made entirely of non-corrosive materials
- Ball screw spins freely when hatch is fully opened or closed eliminating limit switches and burned out motors
- High impact, corrosion proof mounting brackets with stainless steel pull pins
- Powdered metal gears for strength and precision
- Stainless steel ram locks in any position
- CE-certified, ignition protected and ABYC compliant
12-Volt with 2' (61 cm) leads and deutsch connectors. Inline motor design delivers over 500 lbs. of force. Includes high impact, corrosion proof mounting brackets and stainless steel pull pins.
Specifications| Approximate L.O.A. Retracted | 33"" (83.8 cm) |
| Approximate Stroke | 20"" (50.8 cm) |
| Approximate L.O.A. Extended | 53"" (134 cm) |
