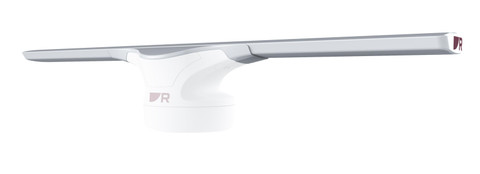

CAD DrawingCAD Drawing 2CAD Drawing 3Raymarine 6' Cyclone Antenna Only
Model: E70630- Aircraft-wing-inspired design is engineered for extremes with best-in-class 100-knot wind rating and designed to meet the commercial grade IEC 62388 standard for ship bourne radar
Replacement Antenna
Specifications| Beamwidth (vertical) | 25 degree |
| Beamwidth (horizontal) | 1.32 degree |
| Polarization | Horizontal |
| Rotation speed | 12, 24, 36, 48, 60 rpm |
| Length | 1945 mm / 76.57 in |
| Weight | 12 Kg / 26.45 lb |
What's in the Box:
- E70630 6' Antenna
