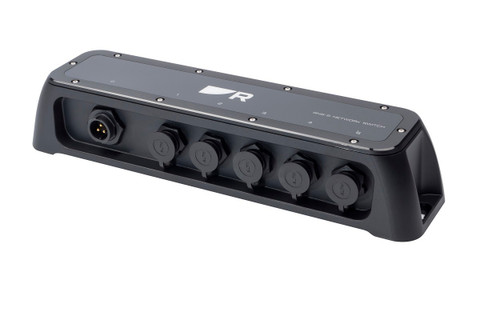

CAD DrawingCAD Drawing 2CAD Drawing 3Raymarine RNS-5 5 Port raynet netwoek Switch
Model: A80731- 5 RayNet Ethernet gigabit ports for fast and reliable connectivity
- Rugged IPX6 and IPX7 construction
- Reliable, waterproof RayNet connector Ethernet cable ports
- Designed for simple bulkhead mounting
- LED power and network port status indicators
- Unmanaged- simply plug and play with Raymarine devices
- No complicated setup or confi guration
The RNS-5 network switch is designed for expanding Raymarine integrated chartplotter systems using RayNet high-speed Ethernet cabling. Use the RNS-5 to integrate Axiom displays with radars, sonar modules, IP cameras, and Teledyne FLIR thermal cameras. The RNS-5 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Two RNS-5 switches can be daisy-chained together for larger systems. The RNS-5 is simple to install and requires no complicated setup.
Specifications| POWER SPECIFICATION | |
| Nominal supply voltage | 12 or 24 V dc |
| Operating voltage range | 9 to 32 V dc |
| Power Consumption | <2.5 watts <600mA @12V |
| ENVIRONMENTAL SPECIFICATION | |
| Operating temperature range | -25°C (-13°F) to + 55°C (131°F) |
| Storage temperature range | -30°C (—22°F) to + 70°C (158°F) |
| Humidity | up to 93% @ 40°C (104°F) |
| Water ingress protection | IPx6 |
| PHYSICAL SPECIFICATION | |
| Dimensions (w x h x d) | 286 mm (11.26 in) x 69 mm (2.72 in) x 55 mm (2.17 in) |
| Weight | .36 Kg (.79 lbs) |
| NETWORK | |
| Protocals | RayNet Ethernet. Legacy SeaTalkHS using an adaptor cable |
| Connection Speed | 1 Gigabit |
| Number of Ports | 5 |
