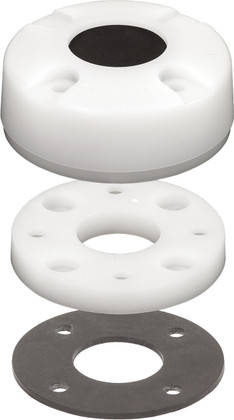

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems CableClam 1.40""
Model: 1003-BSS- Perfect for antenna installation
- Waterproof co-axial installation without removing connectors
- Save the expense of removing and replacing connectors
- Avoid poor connections from removing factory connectors
- For use above the waterline only
Provides a waterproof pass-through for antenna cables without requiring removal of the factory installed connector
Specifications| Max Cable Diameter | 0.56in (14.22 mm) |
| Max Connector Diameter | 1.40in (35.56 mm) |
| Body Material | Acetal |
| Ring Material | UV-Stabilized Thermoplastic |
| Screws | Stainless Steel |
| Seal Material | UV-Stabilized Buna-N Rubber |
