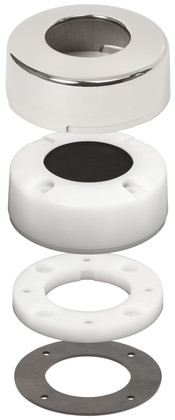

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems CableClam 1.40"" Stainless Steel Cover
Model: 1003100-BSS- Pre-drilled and slit rubber seals for easier installation.
- A polished stainless steel dress cap conceals mounting hardware, matches other deck hardware and offers protection from UV
- Stainless steel fasteners included
- For use above the waterline only
Provides a waterproof pass-through for antenna cables without requiring removal of the factory installed connector
Specifications| Max Cable Diameter | 0.56in (14.22 mm) |
| Max Connector Diameter | 1.40in (35.56 mm) |
| Dress Cap Material | 316 Stainless Steel |
| Mounting Hole | Accept #8 x 7/8"" Screws |
| Ring Material | UV-Stabilized Thermoplastic |
| Seal Material | UV-Stabilized Buna-N Rubber |
