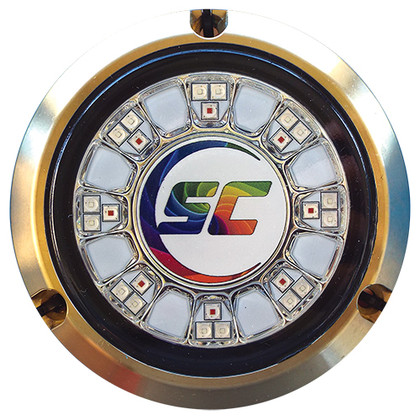

CAD DrawingCAD Drawing 2CAD Drawing 3Shadow Caster SCR-24 RGB Full Color Changing Underwater Light, 24 LEDs Bronze
Model: SCR-24-CC-BZ-10- High Intensity - Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. Our unique design allows us to produce maximum light output and maximum LED life (over 40,000 hours).
- Robust Design - With Shadow-Caster underwater LED lights, there’s no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.
- Surface Mounted - Their lighting solutions feature a low profile design that requires noalteration to the main hull
- Wide Input Voltage Range - Shadow-Caster’s underwated LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.
- Surge and Reverse Polarity Protection - Their lighting systems have an innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.
- Thermal Protection - Their unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.
- Made in USA
The newest underwater light from Shadow-Caster, the SCR-24 is a 24 LED round light offered in single and multi-color versions. Presenting exceptional brightness in a flood pattern, the SCR-24 is built into durable bronze housing, complete with a scratch-resistant glass lens. The Shadow-Caster SCR is a beautiful compliment to any vessel.
Specifications| Watts | 90 |
| Voltage | 10-40 vDC |
| Housing | Bronze |
| Warranty | 2 year |
| Cable length | 10' |
What's in the Box:
- Light with 10' cord
- Documentation
