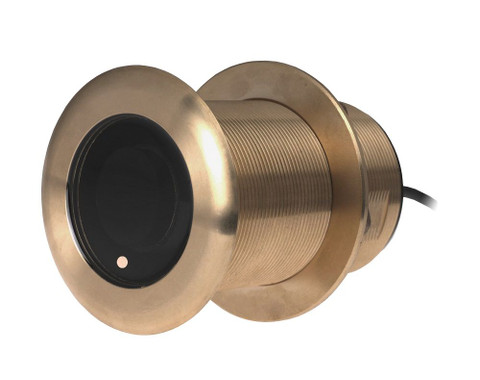

Airmar B75c-12-m 12d Tilt Medium Chirp Si-tex 8-pin Cable

Airmar B75c-12-m 12d Tilt Medium Chirp Si-tex 8-pin Cable

No reviews yet Write a Review
$808.97
SKU:
WTAIRB75C12MBB
Weight:
5.95 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Airmar B75C-12-M 12d Tilt Medium CHIRP with Navico 9-Pin Mix-N-Match Cable

Model: B75C-12-M-9N
  • Depth & fast-response water-temperature sensor
  • Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
  • Hull Type: Fiberglass or wood
  • 50 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
  • Bronze transducer housing
  • Boat Size: Up to 8 m (25’)
  • Exclusive Xducer ID® technology

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. Operating at a frequency range of 80 to 130 kHz, the B75M delivers up to 50 kHz of total bandwidth in just one installation. This transducer shows amazing bottom detail in shallow and medium depths down to 274 m (900').

When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer and more accurate depth readings.

Specifications
Cable-Length9 m (30')
Deadrise Range8° to 15°
Frequency BandMedium CHIRP
Hole Size70 mm (2-13/16"")
Housing Material: BronzeHousing MaterialBronze
Power Rating600 W
Retractable housingNo
Tilt Angle12°
Transducer FunctionsDepth, Temperature
Medium frequency80 to 130 kHz
Beam width24° to 16°
Maximum depth274 m (900')

What's in the Box:
  • B75C-12-M-MM
  • MMC-9N Cable
