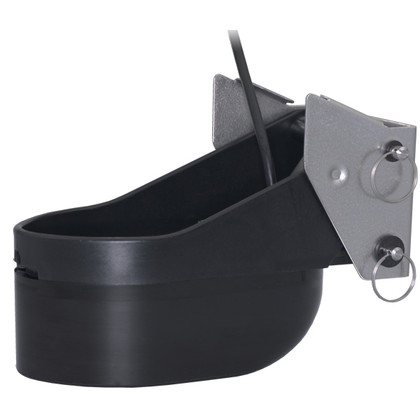

Airmar Tm185c Transducer Medium Chirp With Garmin 8-pin

Airmar Tm185c Transducer Medium Chirp With Garmin 8-pin

No reviews yet Write a Review
$1,015.62
SKU:
WTAIRTM185CM8G
Weight:
8.20 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Airmar TM185C Transducer

Medium CHIRP With Garmin 8-Pin

Model: TM185-HW
  • Depth and fast-response water-temperature sensor
  • 1 kW with a maximum depth of 152 m (500')
  • High Frequency: 150 kHz to 250 kHz - Constant 25° beamwidth
  • 100 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency 200 kHz plus everything else in the bandwidth
  • High frequency band provides excellent shallow to mid-depth performance, bottom detail and fish target separation
  • High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column
  • Urethane transom transducer with a stainless steel bracket for installation on outboard and I/O powered boats
  • Recommended boat size: Up to 10 m (32')
  • Recommended for use on planing and displacement hulls in fiberglass or wood
  • Also available in thru-hull (B175HW) and in-hull (M285HW) models
  • Exclusive Xducer ID® technology

Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

Specifications
Weight4.16 kg (9.17 lb)
Accommodates Transom Angles3° to 21°
Acoustic WindowUrethane
Urethane transom transducer with a stainless steel bracket
One internal broadband ceramic assembly

What's in the Box:
  • TM185C-HW-MM
  • MMC-8G
