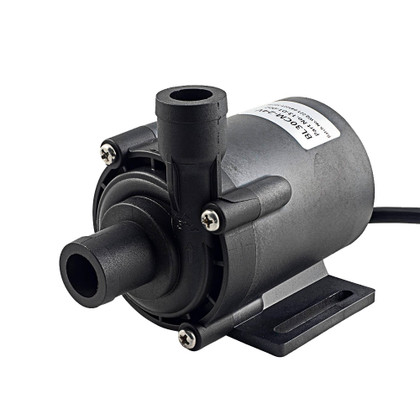

CAD DrawingCAD Drawing 2CAD Drawing 3DC Driven Circulation Pump with Brushless Motor - BL30CM 12V
This circulation pump is for the circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes, and commercial vehicles. There are many advantages to this pump, such as its small size with high efficiency, maintenance-free, ceramic shaft, carbon fiber sleeve, completely waterproof (IP68), brushless DC control, and long service life.
Features:
- Motor brush-less magnetic isolated design
- For continuous duty
- Life span: 20,000 hours
- Materials of pump housing: ABS, PES/SPS/PA66
- Motor IP classification: IP 68
- Noise class: 35dB
- The max liquid temperature for continuous Duty is 80°C & Intermittent is 100°C
Specifications:
- Port size: (inch) 3/4" / (mm) 20
- Weight: 0.48 kg
- Capacity at 0.1 bar: 32 l/min
- Capacity at 0.25 bar: 28 l/min
- Max load: 4.5A
- Max power consumption: 55W
*Includes pump and motor
Manufacturer : Albin Group
Manufacturer Part No : 13-01-001
