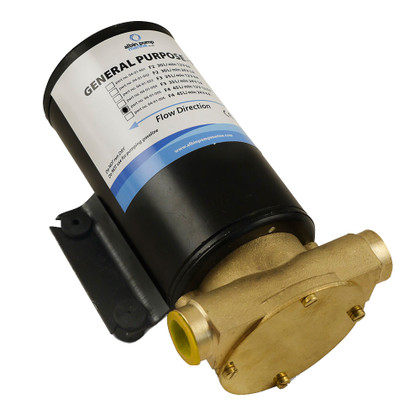

CAD DrawingCAD Drawing 2CAD Drawing 3General Purpose Pump FIP F4 - 24V - 12 GPM
DC 24V F4 size FIP pump with capacity 45 L/min (12 GMP). Used for pumping water, oils and chemicals.
Features:
- Pump body in brass, stainless steel shaft and high quality impeller
- Reversible flow direction
- Self priming up to 5m vertical lift
- Interchangeable with Johnson Pump 10-24689-02
- Specifications:
- Weight: 1 kg/2 lbs
- Dimensions: 180/7L x 90/3.5H x 120/4.7W mm/in
- Port Connections: 19mm (1/2″)
- Type: Reversible flow direction by changing polarity
- Fuse: 6A
*Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance
Manufacturer : Albin Group
Manufacturer Part No : 04-01-006
