CAD DrawingCAD Drawing 2CAD Drawing 3Waste Water 43L (11.5 GPM) - 12V

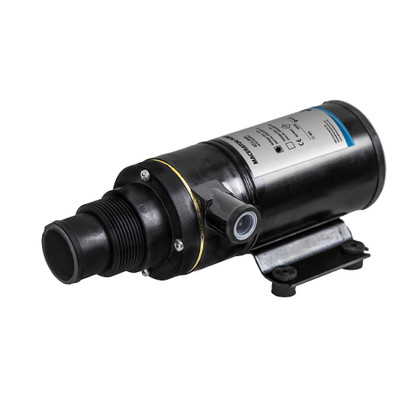

Macerator Pump 12V equipped with rotary cutter and impeller to discharge waste water with high capacity.
Capacity 43 L/min (11,5 GMP) output at 4m total head. Self priming up to 3m vertical lift.
Brass and stainless steel internal parts and pump body in thermo polymer with a long lasting impeller. Inlet port 38mm (1,5″) and outlet 25mm (1″). 12A fuse. Interchangeable with Jabsco 18590-2092, Johnson Pump 10-24453-04.
Specifications:
- Weight: 1.98 kg/4 lbs
- Dimensions: 240/9.4L x 90/3.5H x 130/5W mm/in
- Type: Black Water
*CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance
Manufacturer : Albin Group
Manufacturer Part No : 03-01-005
UPC : 7340176600776
