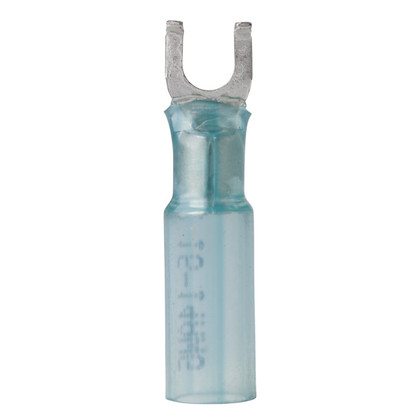

CAD DrawingCAD Drawing 2CAD Drawing 3Ancor 314325 Heat Shrink Spade Terminal, 16-14 #10, 25pc
Model: 314325- Tinned for corrosion resistance
- Pure copper for maximum current flow
- Brazed seam for maximum strength
- UL listed and CSA recognized
Ancor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.
Specifications| Each in Package Height (in) * | 0.630 |
| Each in Package Width (in) * | 2.690 |
| Each in Package Length/Depth (in) * | 4.380 |
| Each in Package Weight (oz) * | 1.450 |
