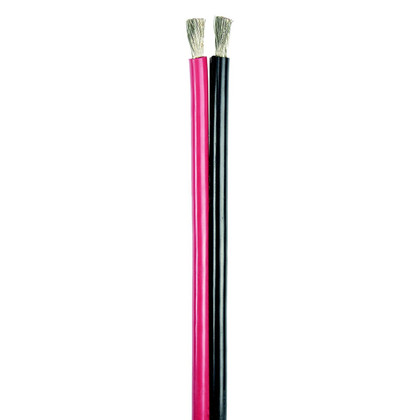

CAD DrawingCAD Drawing 2CAD Drawing 3Ancor 8/2 Bonded Wire 250ft Spool Red/Black Conductors
Model: 121825Ancor Marine Grade® wire and cable is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing.
Ancor’s proprietary premium vinyl insulation stays flexible even in extreme cold (-40°F / -40°C) and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 221°F / 105°C dry and 167°F / 75°C wet, and is resistant to heat and abrasion.
Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards.
