Ancor Heavy Wall Heat Shrink Tubing - 3/4" x 3" - 2-Pack - Black/Red

Ancor Heavy Wall Heat Shrink Tubing - 3/4" x 3" - 2-Pack - Black/Red

No reviews yet Write a Review
$8.75
SKU:
CW61043
UPC:
091887328301
Weight:
0.20 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

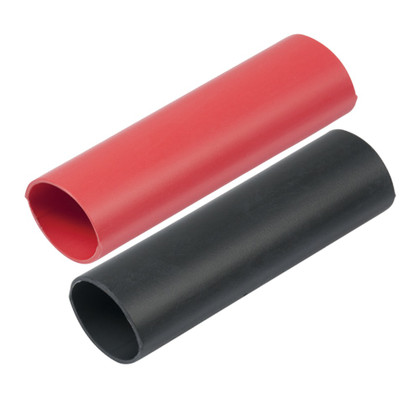

Heavy Wall Heat Shrink Tubing - 3/4" x 3" - 2-Pack - Black/Red

Package of 1 Black / 1 Red 3"(7.6cm) long sections with a 3/4"(19mm) diameter that shrinks to 1/4"(6.4mm)

Wire Range: 8-2/0 AWG

Features:
  • Cross Linked polyolefin tubing is much stronger than PVC tubing and
    will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water,
    oil, acids, and sunlight as well as providing strain relief
  • 3:1 Ratio
  • Shrinks at 257°F / 125°C
  • Operating temperature range of -40°C to 110°C
  • UL 224

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Manufacturer : Ancor
Manufacturer Part No : 326202
UPC : 091887328301
