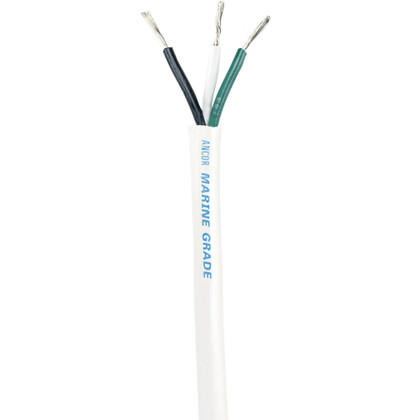

White Triplex Cable - 16/3 AWG - Round - 100'
Features:
Product : ANCOR TRIPLEX ROUND CABLE 100' 16/3 WHITE, BLACK, GREEN
Manufacturer : Ancor
Manufacturer Part No : 133710
Product : ANCOR TRIPLEX ROUND CABLE 100' 16/3 WHITE, BLACK, GREEN
Features:
- Ancor round triplex cable features white, green and black Marine Grade primary conductors (correctly color-coded to ABYC standards) in a white common jacket that is made for easy removal while providing the best abrasion resistance available
- These cables exceed UL 1426 standards and are made from the highest quality ultra flexible (Type 3/Class K) tinned copper stranding that provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing
- Ancors proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600 volts, 105°C dry and 75°C wet, and is resistant to heat and abrasion.
- Features three Marine Grade primary conductors (white, black and green) in a white common jacket.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product : ANCOR TRIPLEX ROUND CABLE 100' 16/3 WHITE, BLACK, GREEN
Manufacturer : Ancor
Manufacturer Part No : 133710
Product : ANCOR TRIPLEX ROUND CABLE 100' 16/3 WHITE, BLACK, GREEN
