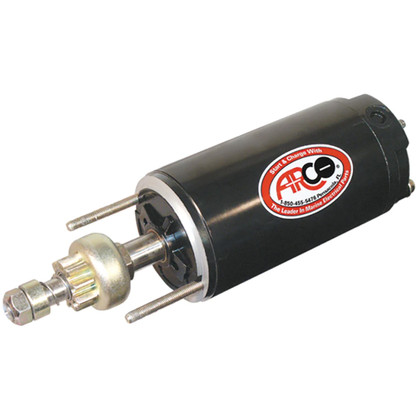

CAD DrawingCAD Drawing 2CAD Drawing 3Chrysler/Force Outboard Starter
The outboard starter will fit Chrysler /Force, 70-150 HP, and 9-tooth drive gear.
ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.
Features:
- Dynamically tested and packaged for out-of-the-box performance
- Nickel-coated and epoxy-painted to reduce corrosion
- Sealed to minimize water intrusion
- Designed for long life and optimum performance
- Armatures are tested to withstand 50 times operating voltages (12 volts)
Replaces:
CHRYSLER 480955
CHRYSLER 490955
CHRYSLER F616955
CHRYSLER FK616955
MERCURY 50-819085
MERCURY 50-819085-1
MERCURY 50-819085T1
MERCURY 50-853869
MERCURY 50-853869T
MERCURY 50-898265002
FORCE 50-819085
FORCE 50-F616955-1
FORCE F616955
*ARCO Assurance 12-month part and labor warranty protection
Manufacturer : ARCO Marine
Manufacturer Part No : 5393
