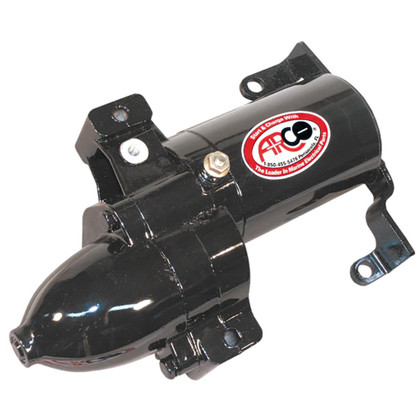

CAD DrawingCAD Drawing 2CAD Drawing 3Johnson/Evinrude Outboard Starter - 10 Tooth
The outboard starter will fit BRP-OMC, V6, V8 loop, 115-300 HP E-TEC, and 10-tooth drive gear.
ARCO advises using a fully charged battery - A weak battery can damage the starter and starter solenoid. And to also clean all connections - A corroded connection creates resistance, lowering the amperage required for an efficient starting circuit.
Features:
- Dynamically tested and packaged for out-of-the-box performance
- Nickel-coated and epoxy-painted to reduce corrosionÂ
- Sealed to minimize water intrusion
- Designed for long life and optimum performance
- Armatures are tested to withstand 50 times operating voltages (12 volts)
Replaces:
BRP-OMC 391511
BRP-OMC 396235
BRP-OMC 397023
BRP-OMC 584799
BRP-OMC 586289
BRP-OMC 586411
BRP-OMC 586731
BRP-OMC 586890
BRP-OMC 586897
BRP-OMC 586957
*ARCO Assurance 12-month part and labor warranty protection
Manufacturer : ARCO Marine
Manufacturer Part No : 5387
