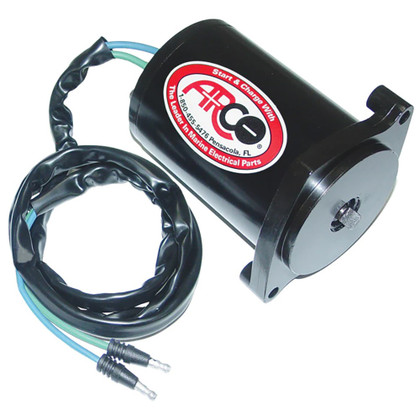

CAD DrawingCAD Drawing 2CAD Drawing 3Replacement Outboard Tilt Trim Motor - Late Model Mercury, 2-Wire
Replacement outboard tilt trim motor that will fit late model Mercury 135, 150 XR6, Magnum lll, 175, 200, 225, 250 HP, 105-140 HP Jet, 2-wire connection, 2-bolt mount, Includes O-ring, Flat-blade shaft, Bullet Connector Terminal Ends.
ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.
Features:
- Tilt trim motors are dynamically tested to ensure out-of-the-box performance
- Motor shafts induction case hardened at bearing surfaces for superior wear resistance
- Epoxy Powder coated for maximum insulation protection
Replaces:
MERCURY Tilt Trim Motor 8M0031551
MERCURY Tilt Trim Motor 8M0060140
MERCURY Tilt Trim Motor 828708
MERCURY Tilt Trim Motor 828708T
MERCURY Tilt Trim Motor 878265A1
MERCURY Tilt Trim Motor 878265A4
SIERRA Tilt Trim Motor 18-6773
*ARCO Assurance 12-month part and labor warranty protection
Manufacturer : ARCO Marine
Manufacturer Part No : 6250
