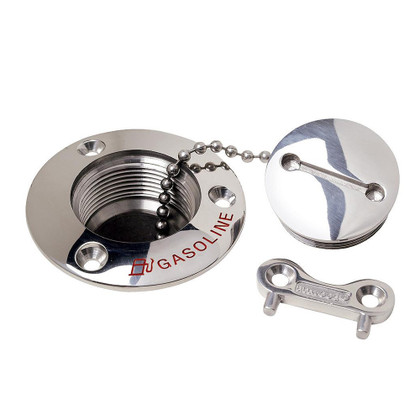

CAD DrawingCAD Drawing 2CAD Drawing 3Gasoline Deck Fill - 1-1/2 inch Stainless Steel Alloy
For 1-1/2 (inch) inner diameter hose. This deck fill is imprinted and color-coded to specify GASOLINE. The flush cap is slotted for a separate key and features an O-ring that seals the cap watertight. Cap is attached by a stainless steel, beaded chain. Long neck accommodates thick deck laminations. Key sold separately.
Features:
- Highly-polished finish
- “Gasoline” imprint with Red Color Code (Not for use with EPA Certified systems)
Specifications:
- 3-1/4 (inch) Fill Neck Length
- 1-7/8 (inch) installation hole size
- 3-inch flange size
- Fits 1-1/2 (inch) I.D. Hose
*Requires a bonding wire to prevent sparking when the nozzle is inserted on gasoline and diesel models per USCG and ABYC H-24 requirements
Manufacturer : Attwood Marine
Manufacturer Part No : 66406-5
