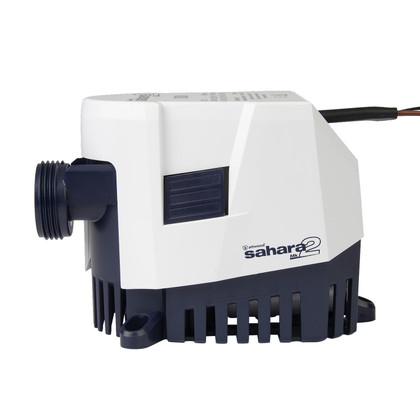

CAD DrawingCAD Drawing 2CAD Drawing 3Attwood Sahara MK2 S800 24vDC 2 Amp Bilge Pump
Model: 5509-7- Patented X-Air Impeller: Prevents air locking so that the pump will not run dry and burn out.
- Flexible Outlets: 90° rotatable elbow outlet allows users to install the pump anywhere in a full 360° orientation.
- Single-Hand Pump Cartridge Release: Convenient when trying to access a pump located in a hard-to-reach area of the boat’s hull.
- Exterior Mounting Feet: Eliminates the need to remove the basket, saving OEMs time on production lines.
- Universal Backwards Compatible Design: 7-pump mounting hole pattern for replacing any top bilge pump in its category.
- SteadySwitch: Buoyancy control reduces cycling, draining the bilge not the battery.
- No Pipe Or Hose Removal Required: Reduces the time that it takes to replace the cartridge.
- Improved Motor Cooling/Heat Dissipation: Prevents overheating that may cause failures, such as blown fuse, leaking, etc.
- Retrofits Footprint Of Current Offering: Provides seamless transition for existing customers.
Sahara Mk2, the ONLY automatic bilge pump that eliminates air locks. What makes Sahara Mk2 so innovative is the patented X-Air™ Impeller. Its engineered performance forces air bubbles trapped in the hose and underside of the pump out of the pipework, so that the pump will not run dry and burn out. This breakthrough technology makes Sahara Mk2 the most reliable automatic bilge pump in freshwater AND saltwater applications.
Specifications| Fuse Size | 2 Amp |
| Outlet Type | 3/4in (19mm) and 1in (25mm) |
| Wire Llength | 29-1/2in (750mm) |
| IP Rating | IP68 |
| Input Voltage | 24-Volt |
