B 4.1" Color Display, DST810 Transducer, WS320 Wireless Wind Sensor & NMEA2000 Starter Kit

B 4.1" Color Display, DST810 Transducer, WS320 Wireless Wind Sensor & NMEA2000 Starter Kit

No reviews yet Write a Review
$2,054.79
SKU:
CW88515
Weight:
1.00 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

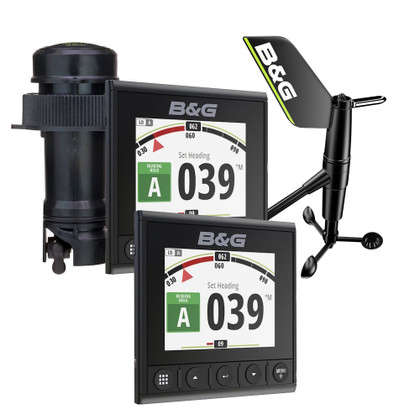

Triton² Speed, Depth & Wireless Wind System Pack - Contains 2 Triton² 4.1" Color Display, DST810 Transducer, WS320 Wireless Wind Sensor & NMEA2000 Starter Kit

The full-color Triton² displays provide sailors with a clear visual representation of key instrument data including Speed, Depth, Wind, Heading, AIS targets, GPS data, and more.

An Optically Bonded display means absolutely zero condensation or fogging, while transflective LCD technology provides exceptional contrast and visibility – day or night – while consuming less power than traditional backlight-only displays. The flexible, NMEA 2000® certified, Triton² Display can be integrated into a wider navigation system and also be combined with a Triton² Pilot keypad and NAC autopilot computer to create a complete autopilot control system, featuring B & G sail-specific autopilot steering algorithms.

Features

  • Optical Bonding: Sporting an Optically Bonded 4.1-inch LCD display, Triton² allows you to see clearly in all conditions with its large clear color display 100% free from condensation or fogging.
  • Efficient LCD Technology: Transflective LCD technology uses reflected ambient light to enhance day-time visibility, providing the clearest sailing dedicated display available. LED backlighting provides highly adjustable illumination when required, making Triton² exceptionally efficient and extending the time available from your battery capacity.
  • Easy to Use: Triton² provides simple on-screen menus controlled by soft-touch and reliable waterproof buttons. Intuitive design makes it easy to configure and use your display.
  • Low Profile Design: At just 8mm thin the Triton² instrument adds a sleek look to any boat. Nearly half the dimension of its thick competitors, Triton² won’t get in the way, catch ropes or offend the eye!
  • NMEA 2000® Certified: NMEA 2000 certification means you can be confident when adding Triton² to an existing NMEA 2000 system. NMEA 2000 certification also opens up a wide variety of future expansion options for your Triton² system.
  • Easy Installation: A straight-forward front mounting method and a clip-on bezel over the (4) mounting screws combine with a single NMEA 2000 connection carrying both power and networked data. The Triton² is simple and quick to install
  • Autopilot Integration: Triton² will display B & G Pilot data on a clear status screen. With the addition of a Triton² Pilot keypad, the instrument becomes a fully functional Pilot controller.

Comes with

  • N2K MICRO-C BACKBONE KIT - 000-10760-001
  • TRITON2 DIGITAL DISPLAY - 000-13294-001 (x2)
  • WS320 (wireless) Interface - 000-14388-001
  • WS320 Wireless Wind Sensor - 000-14390-001
  • DST-810 DEPTH/SPEED/TEMP SENSOR - 000-15735-001

Product : B&G TRITON2 SPEED DEPTH WIND SYSTEM PACK
Manufacturer : B&G
Manufacturer Part No : 000-14957-002
Product : B&G TRITON2 SPEED DEPTH WIND SYSTEM PACK
