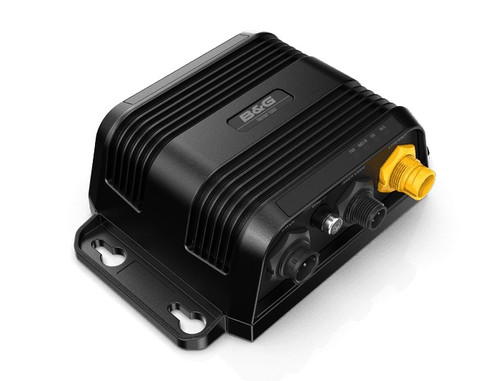

CAD DrawingCAD Drawing 2CAD Drawing 3B&G Triton™ Edge Sailing Processor with NMEA 2000®, Ethernet and built-in Wi-Fi.
Model: 000-15134-001- Latest powerful micro processor provides all core instrument calculations
- Enhanced feature set for serious cruising yachts
- B&G App Integration
- Integrated webserver provides easy access to system configuration and control
- Record all you sailing data to the cloud
- Review your sailing data using the B&G companion app
- Backup, restore, and export of sailing data
- Ethernet interface. Ethernet, 100Mbps, waterproof
- Dual Wifi — Internet & Hotspot
- NMEA 2000® compliant interface (Micro C)
- LED status indicators
- Simple mounting, connectivity and a low profile design allows discrete and ease installation on any yacht.
- 12/24V power
Triton™ Edge™ Sailing Processor delivers an enhanced suite of sailing data such as advanced StartLine calculations, advance true wind data and autocalibration, boat speed calibration and correction, wind correction for heel/trim, improving accuracy of your sailing information. Wi-Fi and Ethernet allow for expanded integration with Triton™ 2 and Nemesis® displays, and Vulcan™ and Zeus® Chartplotters, whilst integration with the B&G® App also enables the ability to review or replay your sailing data, and web-browser based control allows for easy set-up and commissioning.
Specifications| Environmental | |
| Operating temperature | Minus 15 to 55 C (5 to 131 F) |
| Storage temperature | Minus 40 to 85 C (Minus 40 to 185 F) |
| Waterproof rating | IPX6; IPX7 |
| Electrical | |
| Supply voltage | 12/24V DC nominal (9-31V DC) |
| Physical | |
| Weight Weight | 260g (0.57lbs) |
| Compass Safe Distance | 0.5m (1.6’) |
| Interface/Connectivity | |
| NMEA 2000® | 1x Micro-C |
| Ethernet | 1x Navico 5 pin yellow |
| WiFi | 802.11 b/g; Internal antenna |
What's in the Box:
- Triton Edge Processor
- 4-Pin Power Cable
- N2K T-Joiner
- N2K Cable - 0.6m (2ft)
