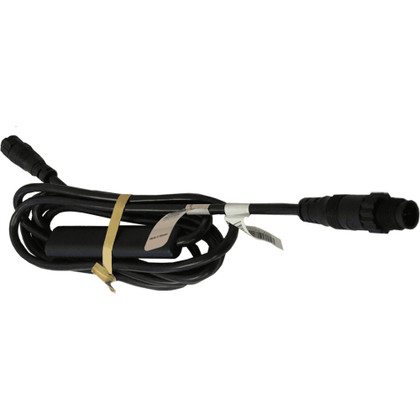

CAD DrawingCAD Drawing 2CAD Drawing 3WS310 Wired Interface
WS310 (wired) Interface for use with WS310 Wind Sensor, allows connection to your NMEA 2000® network.
Features:
- Interfaces a WS310 wind sensor to an NMEA 2000 network
Specifications:
- NMEA 0183 Sentences supported: MWV, R
- NMEA 2000 Connectivity: 1 x Micro-C port, 1 LEN
- Supply Voltage: 12V DC (9 - 16V DC)
- Operating Temperature Range: -15°C to +55°C (5°F to 131°F)
- Storage Temperature Range: -20°C to +60°C (4°F to 140°F)
- Waterproof Rating: IPX7
- Compass Safe: 300mm (12")
- Dimensions W x H x D: 90 x 20 x 10mm (3.5 x 0.8 x 0.4")
- Warranty: 2 Years
Manufacturer : B&G
Manufacturer Part No : 000-14389-001
UPC : 9420024171486
