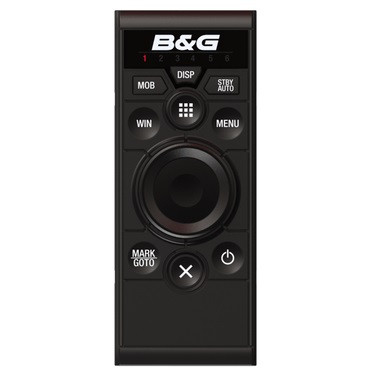

CAD DrawingCAD Drawing 2CAD Drawing 3B&G ZC2 Remote controller. (Portrait mount)
Model: 000-12365-001- Dash mount with 8 mm (0.32"") profile
- Narrow width enables easy chair arm mounting
- Total flush mount (requires bracket)
- Control up to 6 MFD displays
- Functions with ZEUS all sizes and ZEUS Glass Helm
- Vulcan
- Keypad configuration is optimized for Simrad HEROiC software control
- High volume alarm output for critical notifications
- Aluminium control dial with build in cursor functions
- High volume alarm output for critical notifications
- Single NMEA 2000 connection
The ZC2 remote controller has been designed for use with ZEUS / ZEUS / Glass Helm and Vulcan MFD systems and brings simple and precise MFD control in even the roughest sea conditions. ZC2 has been designed for many mounting configurations and has a solution for every install
ZC2 features a single control dial that provides multi axis controls Rotary selector for menu select, chart zoom etc. X,Y cursor pad for chart panning and cursor placement Push to select enter key
Specifications| Weight | 300g(0.66lb) |
| Dimensions | 2.36"" w x 5.9"" H x 1.75"" D |
| Power Consumption | <100mA @13.5V |
| Network Load (LEN) | 2 |
| Colour | Black |
| Environmental Protection | IPx6 (from front when dash mounted with gasket) |
| Alarm Sound Output | 75dBA @ 0.5m |
| Operating Temperature | -15°C to +55°C (5°F to 131°F) |
| Connector | Molded 1.8 m (6 ft) cable with Micro-C connector |
What's in the Box:
- ZC2 Remote controller. (Portrait mount)
- N2K T-Joiner
- Suncover
- Dash Mounting Kit
