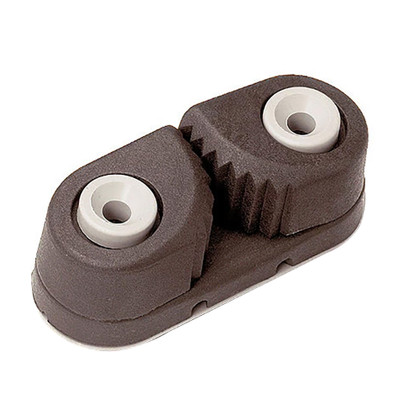

CAD DrawingCAD Drawing 2CAD Drawing 3'K" Cam Mini
Manufactured from Dupont Kevlar/Zytal, K Cams are available in 3 sizes to accept lines up to 14mm (9/16”) in diameter. This advanced material offers performance advantages over carbon fiber and conventional glass-reinforced resins.
'K' cams are very strong, lightweight, and have excellent wear resistance. A progressive tooth design ensures maximum holding power on all types of line, whilst maintaining minimum wear to both cam and line.
'K' Cam bases feature a stainless steel wear bar for prolonged life.
The cams utilise stainless steel leaf springs which give a smooth but positive action and a longer life span than conventional wire springs.
'K' cam cleats come with a range of accessories including Pillar fairleads, Wire fairleads, and Top fairleads
Specifications:
- Holding power 190kg (420lbs)
- Maximum line 10mm (3/8”)
- Hole centres 30mm (1 3/16)
- Weight 17g (0.6oz)
Manufacturer : Barton Marine
Manufacturer Part No : 70100
UPC : 5035088701001
