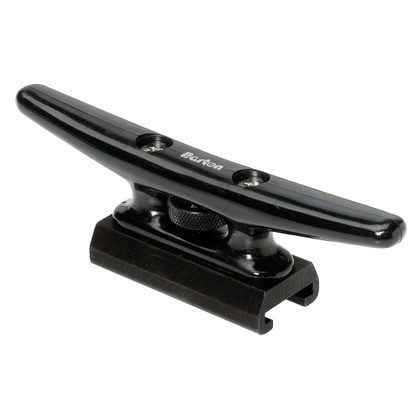

CAD DrawingCAD Drawing 2CAD Drawing 3165mm Sliding Cleat - Fits 25mm T Track
A cost-effective solution to fitting a mid-ship spring cleat where access under the side deck is limited - is simply to remove a Genoa track end stop, slide on the cleat and lock it in the desired position.
When not in use, slide the cleat to one end of the track, or leave off one track end permanently to enable easy removal of the cleat. Alternatively, fit a short length of track in the desired position so that cleats can be fitted when required and removed when not in use - reducing deck clutter and rope snags.
Compatible With:
- .98" (25 mm) wide "T' Track slider systems
Technical Specifications:
- Material (Cleat) - Nylon
- Material (Base) - Aluminum
- Dimensions (Cleat length) - 6.49" (165 mm)
- Weight - 4.73 oz (134 g)
*Sold as an Individual
Manufacturer : Barton Marine
Manufacturer Part No : 51253
UPC : 5035088512539
