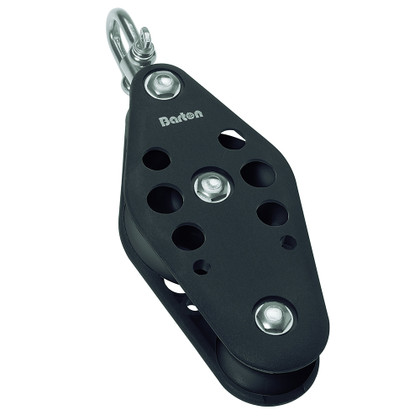

CAD DrawingCAD Drawing 2CAD Drawing 3Series 5 Fiddle Swivel Block- 54mm
Plain Bearing Blocks
Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.
Specifications
- Sheave size: 54mm x 17mm
- Max rope diameter: 12mm
- Safe working load: 750kg / 1650lbs
- Breaking load: 1500kg / 3300lbs
- Length: 185mm
- Weight: 300g
Product : BARTON MARINE SIZE 5 FIDDLE SWIVEL
Manufacturer : Barton Marine
Manufacturer Part No : N05 430
