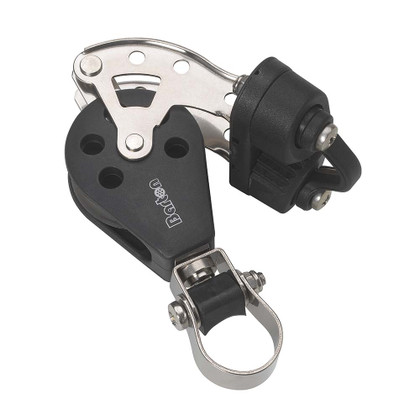

CAD DrawingCAD Drawing 2CAD Drawing 3Size 3 Stanchion Lead Block - Single with Becket & Cam Cleat
Barton Marine's stanchion lead blocks have proven to be popular with Cruising sailors all over the World. Mounted onto the stanchion base, the stanchion lead block enables the Genoa furling line to be led back to the cockpit for easy adjustment.
Ball bearing sheaves have a precision molded acetal sheave running on a significant diameter brass bearing, ensuring free running under the highest loads. The unit will fully rotate about the swivel head to match your pulling angle.
Cam cleat will secure the line into place.
Block attachment to stanchion is by means of screwing together the integral Stainless Steel strap.
Technical Specifications
- Sheave - Single
- Sheave Size - 1-3/4" (45mm)
- Maximum Rope Diameter - 3/8" (10mm)
- Safe Working Load - 881 lb (400 kg)
- Maximum Stanchion (Tube) Size - 1" (25mm)
*Sold as an Individual
Manufacturer : Barton Marine
Manufacturer Part No : N03591
UPC : 5035088086641
