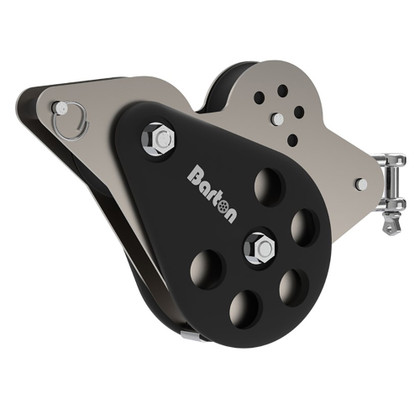

CAD DrawingCAD Drawing 2CAD Drawing 3SkyLock 800
The Barton SkyLock 800 features 316 stainless steel side plates, glass-reinforced nylon cover plates, and an internal self-locking aluminum cam to lift and lock loads securely using lines of 8 12mm.
The clever design and construction of the locking cams means the control line will never allow loads to drop even when accidentally released. Designed for use in conjunction with 3:1 or 4:1 purchase systems.
Can be used for commercial and leisure marine operations including a davit hoist system to lift dinghies, outboards, provisions, and equipment on board, especially useful when short-handed.
Specifications:
- SWL: 800kg/1,760lbs
- Break Load: 1600kg /3500lb
- Maximum line: 12mm
- Length: 152 mm
- Height: 38 mm
- Width: 110 mm
- Weight: 450 grams
Manufacturer : Barton Marine
Manufacturer Part No : N09421
UPC : 5035088087884
