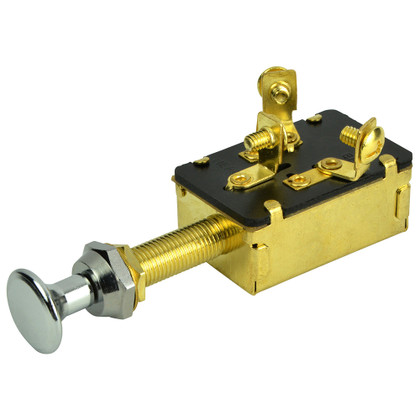

CAD DrawingCAD Drawing 2CAD Drawing 33-Position SPDT Push-Pull Switch - OFF/ON1/ON1 & 2
Single pole, double throw switch turns on position 1 or position 1 and 2.
Features:
- Heavy-duty, noncorrosive construction with moisture-repellent insulators
- Brass case, stem, terminals and mounting hardware
- All knobs are screw-on type
- Nominal voltage is 6-36V DC.
- Rated for 10A at 12V DC
- #8-36 screw terminals
- Fits panels up to 1" thick
- Same as Cole Hersee part number M-476
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : BEP Marine
Manufacturer Part No : 1001301
UPC : 870216045955
