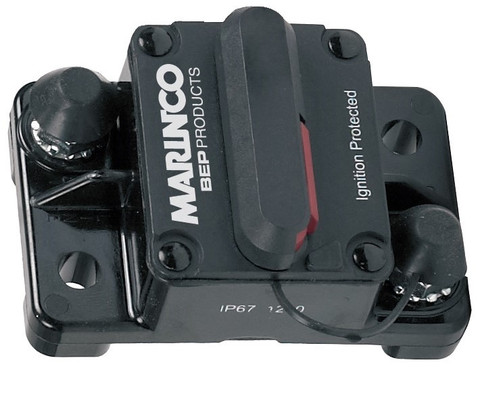

CAD DrawingCAD Drawing 2CAD Drawing 3BEP 30 Amp Thermal Circuit Breaker Single Pole Surface Mount
Model: 185030F-01-1Heavy-duty single pole thermal type breakers are ideal for auxiliary and accessory circuits, trucks, buses, RVs and marine applications, battery chargers and DC audio systems. They are sealed for engine compartment and bilge area applications.
Specifications| Amps | 30 |
| Volts | 12-30vDC |
| Poles | Single |
| Operating Temperature | -25°F (-32°C) to 180°F (82°C) |
| Mounting | Surface |
| Ingress Protection Rating | IP67 |
