ELCI Main 30A Double Pole + 1 Position
Features:
Specifications:
Includes:
(1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position

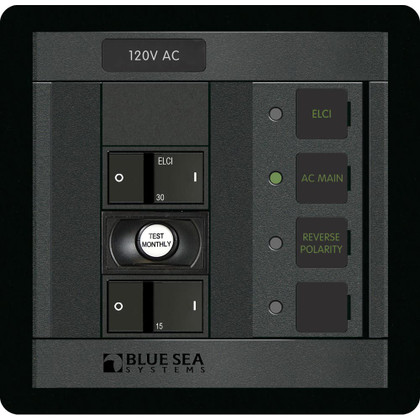

Product : BLUE SEA 1190 ELCI MAIN 30A DOUBLE POLE + 1 POSITION
Manufacturer : Blue Sea Systems
Manufacturer Part No : 1190
Product : BLUE SEA 1190 ELCI MAIN 30A DOUBLE POLE + 1 POSITION
Features:
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- One 15A AC Branch Flat Rocker Circuit Breaker
- Red " Reverse Polarity" LED
- Includes 4206 AC Panel Basic Square Format Label Set
- All circuit label positions are backlit
- "ON" indicating LEDs
Specifications:
- Positions: 1
- Nominal Voltage: 120V AC
- Backlit Label*: Green LED
- Height: 4.75" (120.65mm)
- Width: 4.88" (123.95mm)
- Depth: 3.99" (101.35mm)
- Weight: 1.00lb (0.45kg)
Includes:
(1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position
