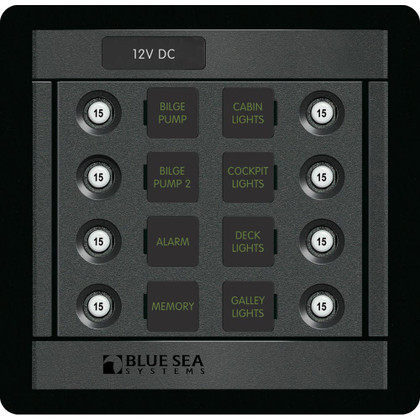

DC 8 Position CLB Square
Features:
Specifications:
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7056 - Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
Manufacturer : Blue Sea Systems
Manufacturer Part No : 1450
UPC : 632085014506
Features:
- High-density circuit protection
- Includes 4205-Square Format Label Set
Specifications:
- Positions: 8
- Nominal Voltage: 12V DC / 24V DC
- Maximum Amperage*: 90A
- Height: 4.75" (120.65mm)
- Width: 4.88" (123.95mm)
- Depth: 3.50" (88.9mm)
- Weight: 1.25lb (0.57kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7056 - Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 1450
UPC : 632085014506
