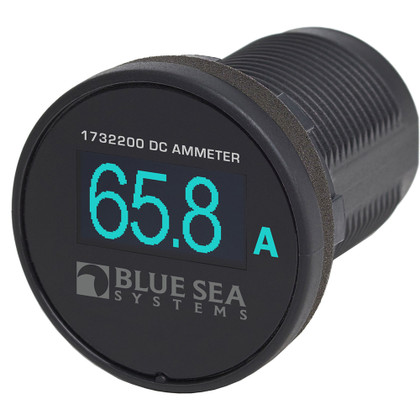

CAD DrawingCAD Drawing 2CAD Drawing 31732200 Mini OLED Ammeter - Blue
Monitors essential electrical system parameters on a bright, waterproof, daylight readable OLED screen.
Features:
- Compact size enables mounting in any convenient location
- Reverse polarity protected
- Mounts in a common 1-1/8 in hole
- Convenient amperage monitoring
- Monitors -100A to 100A DC
- Positive or negative side wiring
- Color: Blue
- Meter: Current
- Nominal Voltage: 12V DC/24V DC
- Resolution: 0.1A
- Intermittent Rating: 110A
- Cranking Rating 30 Sec: 175A
- Input Voltage Range: 8V-36V DC
- Operating Current: 15mA
- Switching Cycles: 10,000
- Weight: 0.70lb (0.32 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 1732200
UPC : 632085173227
