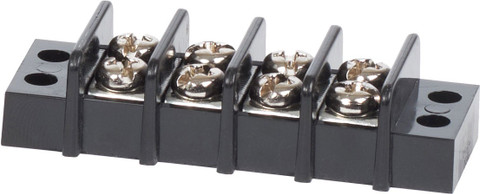

CAD DrawingCAD Drawing 2CAD Drawing 3Blue Sea Systems Terminal Block 20A - 4 Circuit
Model: 2404-BSS- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
| 4 | |
| Length | 2.17in (55.12 mm) |
| Maximum Voltage | 300V AC/DC |
| Continuous Rating | 20A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
- Shipping Programs:
- Qualifies for Ground and 2 Day
- Related Items:
- BSS2406,BSS2408,BSS2410
- Manufacturer:
- NAVICO GROUP AMERICAS LLC
- Prop 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- Conditon:
- New unit
