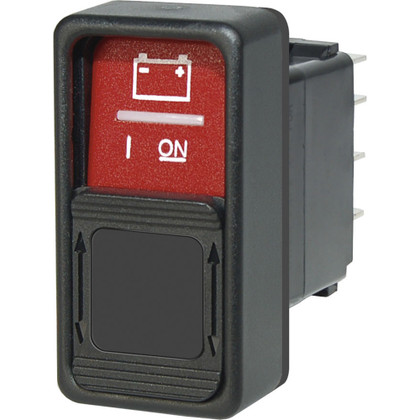

CAD DrawingCAD Drawing 2CAD Drawing 32155 - Remote Control Contura Switch with Lockout Slide
- Vibration, shock, thermoschock, moisture and salt spray resistant
- Lockout slide reduces the risk of accidental switching
Certifications:
- Meets UL 1500 and ISO 8846 external ignition protection requirements
- IP67 - Temporary immersion for 30 minutes
Technical Specifications:
- Amperage Maximum Operating - 20A @ 12V DC and 15A @ 24V DC
- Amperage Operating Current - 18mA
- Pole/Throw - SPDT
- Lighting - LED rated for a 1/2 life of 100,000 hours
- Mounting Hole (H x W) - 1.45" x .83" (36.83" x 21.08")
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 2155
UPC : 632085021559
