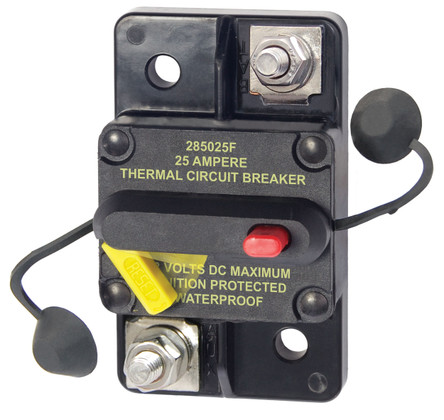

Blue Sea 285-series 25 Amp Circuit Breaker Surface Mount

Blue Sea 285-series 25 Amp Circuit Breaker Surface Mount

No reviews yet Write a Review
$45.80
SKU:
WTBSS7180
UPC:
632085071806
Weight:
0.50 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Ble Sea Systems 285-Series Circuit Breaker - Surface Mount 25A

Model: 7180-BSS
  • Drop in replacement for 185-Series Circuit Breakers
  • Visible reset lever shows open condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements
  • Weather Resistant
  • Combines switching and circuit breaker function into one unit*
  • ""Trip Free"" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Specifications
Amperage25A
Maximum Voltage48V DC
MountingSurface Mount
Circuit Breaker TypeThermally responsive Bi-metal blade
Terminal Stud Torque60 in-lb (6.78 Nm)
Interrupt Capacity3000A @ 48V
Minimum Operating Temperature-40° C
Maximum Operating Temperature85° C
Circuit Breaker ClassType III - switchable/manual reset - trip free
Terminal StudM6 (accepts 1/4"" Ring Terminal)
