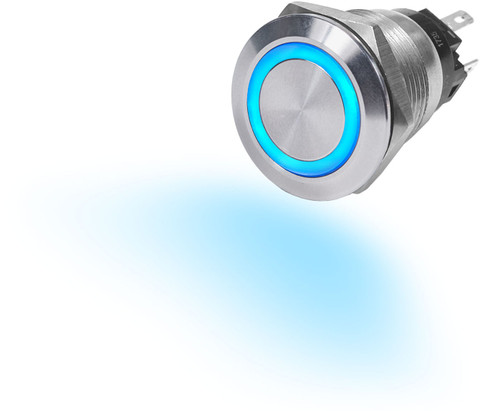

Blue Sea 4160 10a Push Button Led Ring Switch Off-on Blue

Blue Sea 4160 10a Push Button Led Ring Switch Off-on Blue

No reviews yet Write a Review
$23.23
SKU:
WTBSS4160
UPC:
632085041601
Weight:
0.20 LBS
DOWNLOADS
Product PDF
Spec Sheet PDF
CAD Drawing
CAD Drawing 2
CAD Drawing 3

Blue Sea 10A Push Button LED Ring Switch Off-On Blue

Model: 4160-BSS
  • 10A continuous
  • Can be wired for normally open or normally closed
  • Installs with .110inch quick connects (included in retail package)
Specifications
ActionOFF-ON
Amperage10A @ 12V DC Resistive
3A @ 12V Inductive
Nominal Voltage12V DC
Maximum LED Operating Current20mA
Minimum Operating Temperature-10° C
Maximum Operating Temperature70° C
Minimum Storage Temperature-55° C
Maximum Storage Temperature85° C
IlluminationIndependent — Separate contacts for LED power
Max Panel Thickness0.31in (7.87 mm)
Mounting Hole¾" (19mm)
Switching Cycles40,000
Termination5 — 0.110inch Quick Connect terminals
