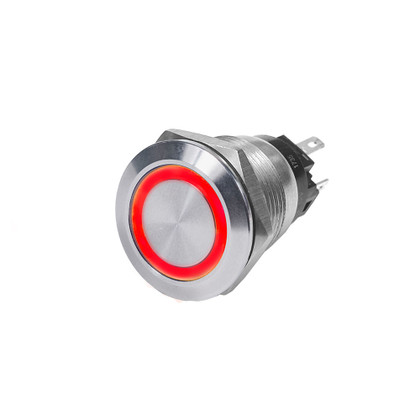

CAD DrawingCAD Drawing 2CAD Drawing 34162 SS Push Button Switch - Off-On - Red - 10A
- 10A continuous
- Single Pole Double Throw or Single Pole Single Throw
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
Specifications
- Action: OFF-ON
- Amperage: 10A @ 12V DC
- Nominal Voltage: 12V DC
- Maximum LED Operating Current: 20mA
- Minimum Operating Temperature: -10° C
- Maximum Operating Temperature: 70° C
- Minimum Storage Temperature: -55° C
- Maximum Storage Temperature: 85° C
- Illumination: Independent – Separate contacts for LED power
- Mounting Hole: 19mm
- Switching Cycles: 18,000
- Termination: 5 – 0.110inch Quick Connect terminals
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product : BLUE SEA 4162 SS PUSH BUTTON SWITCH 10A OFF-ON RED
Manufacturer : Blue Sea Systems
Manufacturer Part No : 4162
UPC : 632085041625
